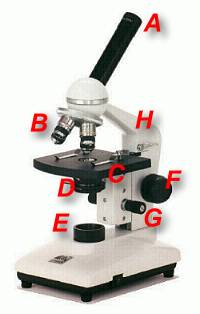

The eyepiece can be adjusted to focus the image properly in your eye. Sometimes there are two.
|
|
The lenses can be rotated to low power (x40), medium (x100), or high power (x400). Always start with the low power lens (the short one); move it as close to the slide as possible (as you watch from the side), using the coarse focusing knob.
|
|
The stage holds the glass slide containing the object to be viewed.
|
|
The aperture, or iris diaphragm, allows you to control the amount of light entering the lense.
|
|
The light source may be a bulb or a mirror. A mirror will have to be pointed at an external light source; never point it directly at the sun.
|
|
The coarse focus adjustment knob lets you quickly focus on the object to be viewed. Use this one first, and turn it so the lense moves upward.
|
|
The fine focus adjustment knob lets you adjust the focus so the image is sharply defined.
|
|
The handle. Use one hand here, and the other under the base, when you are carrying the microscope.
|
